DebugATPABounds

**Bobzilla69** · 09-09-2010, 08:28 PM

hey,

not sure if this is the right place but yeh.

i am trying to use DebugATPABounds(); in my script but it doesnt seem to work right any more, it use to make a square box with different colours for a ATPA, but it doesnt do that anymore, well at least not in Simba.

DebugATPA(); work like it did in scar in Simba but i dont find it as good as DebugATPABounds(), is it possible to have it fixed?

thanks

edit: forgot to say what its doing, its simply putting a number in black text in the relevant area, its not easy to read.

**Wanted** · 09-09-2010, 08:36 PM

DebugATPABounds hasn't changed in quite some time.

I'm not familiar enough with SCAR's canvases as it is, maybe someone else can take a look at this.

**Bobzilla69** · 09-09-2010, 09:02 PM

hmmm, must just be the way Simba is written that somehow makes it handle it differently.

anyone els have any ideas or solutions it would be greatly appreciated

**Bobzilla69** · 09-10-2010, 09:44 AM

finally got round to making a comparison of the two and there differences in case people didnt really understand what i meant.

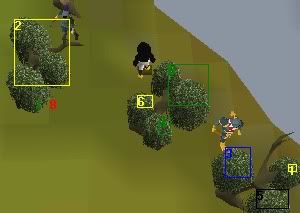

This is what DebugATPABounds looks like when run in Scar with S.M.A.R.T

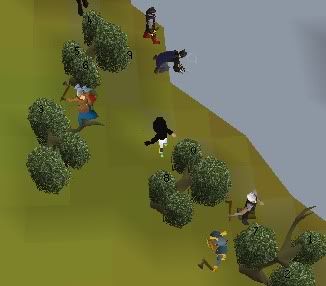

This is what DebugATPABounds looks like when run in Simba with S.M.A.R.T

edit: sorry for bump, added larger Simba DebugATPABound image

**Freddy1990** · 09-10-2010, 02:34 PM

If this were SCAR, I'm sure someone would tell you to just use Simba...

**Bobzilla69** · 09-10-2010, 02:38 PM

Originally Posted by Freddy1990

If this were SCAR, I'm sure someone would tell you to just use Simba...

ok..... it aint a life or death situation i just found it weird that they worked differently in the two programs, it would be nice to have it working the same in both.

also if i simply use DebugTPA it works the same in both programs

**Freddy1990** · 09-10-2010, 02:40 PM

Originally Posted by bobzilla69

ok..... it aint a life or death situation i just found it weird that they worked differently in the two programs, it would be nice to have it working the same in both.

also if i simply use DebugTPA it works the same in both programs

I'm not entirely sure, but while SRL uses mostly canvases for this kind of method in SCAR, it uses FastDraw functions to achieve the same thing in Simba, maybe something went wrong with the conversion there...

**Bobzilla69** · 09-10-2010, 02:42 PM

hmmmm, interesting, thanks for the info Freddy1990, on a side note looking forward to the next Scar release.

**Freddy1990** · 09-10-2010, 02:44 PM

Originally Posted by bobzilla69

hmmmm, interesting, thanks for the info Freddy1990, on a side note looking forward to the next Scar release.

I've taken a look for you, and it looks like I was right, Simba draws the boxes using the FastSetPixel function and such, though I'm not sure why it wouldn't work, while debugging SCAR's core I had an issue with canvases in SRL and I rewrote that function so it would use the same code for SCAR as it does for Simba right now and it worked fine back then.

**Bobzilla69** · 09-10-2010, 02:52 PM

ok, so essentially its the same code, but its being interpreted differently for some reason.

is there another way to draw the boxes in Simba?

the DebugATPABounds cant be the only function that is being affected (even if it isnt that critical)

**Freddy1990** · 09-10-2010, 02:58 PM

Originally Posted by bobzilla69

ok, so essentially its the same code, but its being interpreted differently for some reason.

is there another way to draw the boxes in Simba?

the DebugATPABounds cant be the only function that is being affected (even if it isnt that critical)

I'm not sure, if Simba supports canvases, you could use those like they're used for SCAR I suppose, though I'm not sure if Simba has the required routines to draw the canvas to it's debug window...

EDIT: Another solution would possibly be to move the function into a plugin and have it generate a bitmap in there, then get the bitmap from a DC inside of SCAR/Simba, it would speed up the function in the process.

**Zyt3x** · 09-10-2010, 03:11 PM

Originally Posted by Freddy1990

If this were SCAR, I'm sure someone would tell you to just use Simba...

Well.. yeah... of course.. SCAR 3.22 had so many bugs in it that you couldn't even open it without getting an error, so switching to Simba would erase a lot of bugs.

The newest SCAR looks fabulous though. Great job!

**Freddy1990** · 09-10-2010, 03:18 PM

Originally Posted by Zyt3x

Well.. yeah... of course.. SCAR 3.22 had so many bugs in it that you couldn't even open it without getting an error, so switching to Simba would erase a lot of bugs.

The newest SCAR looks fabulous though. Great job!

Yea that's true, that's why I put so much effort into SCAR 3.25, I rewrote tons and tons of code for it to ensure as many bugs as possible were eliminated

But to get back on topic, as I said, it could be resolved by moving the function into a plugin, it may not be a bad idea to move all of these tpa debugging functions into WizzyPlugin, they seem to execute fairly slowly, I guess they aren't used as much in scripts, but it might be a good idea anyway, also with the plugin it will certainly let you use canvases for the Simba version on the FPC side.

**Wizzup?** · 09-10-2010, 04:42 PM

You can use the FastDrawTPA function if you create a TPA from the bounds. It was added with all the WizzyPlugin functions to Simba.

Also, can you file a bug for this? (Preferably use SRL as project) I'm quite confident it's a coding error in the debug code rather than an error in Simba, but I'll have a look at it anyway.

**Freddy1990** · 09-10-2010, 04:46 PM

Originally Posted by Wizzup?

You can use the FastDrawTPA function if you create a TPA from the bounds. Can you file a bug for this? I'm quite confident it's a coding error in the debug code rather than an error in Simba, but I'll have a look at it anyway.

I'm not quite sure what the problem could be either, DebugATPA uses pretty much the same functions, so I doubt the problem is in Simba as well, but I tested the simba code for DebugATPABounds with SCAR a while back and it worked for SCAR back then so most of the code should be correct, maybe one of the functions that's really Simba specific is called incorrectly somewhere in there.

**Wanted** · 09-10-2010, 07:50 PM

I believe this can be coded to worked in simba, but I have no idea how. The problem can be fixed include side or simba-side. You just have to work around things.

Edit: The original version of DebugATPABounds didn't work either

Simba Code:

{$include SRL\SRL.scar}

{*******************************************************************************
function DebugATPABounds2(aPoints: T2DPointArray; BmpName: string): Boolean;
By: Wizzup? & lordsaturn
Description: Shows an image of the client, plotting each TPA's bounds as a box
             of different colour per TPA. If a name is specified, an image
             will be saved.
*******************************************************************************}
function DebugATPABounds2(aPoints: T2DPointArray; BmpName: string): Boolean;
Var
   Width, Height, ClientBMP, I, L, Col, x2, y2, h, hh : Integer;
   ClientBox : tbox;
   Box : tbox;
   p: TPointArray;
   Colours: TIntegerArray;
Begin
  Try
  begin
    h := High(aPoints);
    for i := 0 to h do
    begin
      clientbox := GetTPABounds(APoints[i]);
      x2 :=  max(x2, clientbox.x2);
      y2 :=  max(y2, clientbox.y2);
    end;
    width := x2 + 5;
    height := y2 + 5;
    DisplayDebugImgWindow(Width, Height);
    ClientBMP := BitmapFromString(Width, Height, '');
    CopyClientToBitmap(ClientBMP, 0, 0, width, height)
    For I := 0 To h Do
    Begin
      Colours := [clRed, clBlue, clBlack, clGreen, clYellow];
      col := Colours[Random(Length(Colours))];
      box := GetTPABounds(APoints[i]);
      box.x1 := box.x1 - 3;
      box.y1 := box.y1 - 3;
      box.x2 := box.x2 + 3;
      box.y2 := box.y2 + 3;

      p := LoadTextTPA(IntToStr(i), UpChars, hh);
      hh := High(p);
      for L := 0 to hh do
        FastSetPixel(ClientBmp, p[L].x + box.x1 + 3, p[L].y + box.y1 + 3, col);

      //For L := box.x1 To box.x2 Do
      for L := 0 to box.x2- box.x1 do
      begin
        FastSetPixel(ClientBMP, L, box.y1 - box.y1, Col);
        FastSetPixel(ClientBMP, L, box.y2 - box.y1, Col);
      end;
      //For L := box.y1 To box.y2 Do
      for L := 0 to box.y2- box.y1 do
      begin
        FastSetPixel(ClientBMP, box.x1 - box.x1, L, Col);
        FastSetPixel(ClientBMP, box.x2 - box.x1, L, Col);
      end;
    End;
    DisplayDebugImgWindow(Width, Height);
    {$ifdef Simba}
    DrawBitmapDebugImg(ClientBMP);
    {$else}
    SafeDrawBitmap(ClientBMP, GetDebugCanvas, 0, 0);
    {$endif}
    If BmpName <> '' Then
      SaveBitmap(ClientBMP, ScriptPath + BmpName + '.bmp');
    FreeBitmap(ClientBMP);
  End;
  Except
    FreeBitmap(ClientBMP);
    Writeln('Error in DebugATPABounds');
  End;
  Result := True;
End;

var
  TPA: TPointArray;
  ATPA: T2DPointArray;

begin
  SetUpSRL;
  TPA := TPAFromBox(IntToBox(0, 0, 500, 500));
  ATPA := TPAToATPAEx(TPA, 10, 10);
  DebugATPABounds2(ATPA, '');
end.

**mastaraymond** · 09-10-2010, 10:48 PM

Fixed it.. (It worked when I created it, no doubt)

**Bonfield** · 09-10-2010, 11:44 PM

I know it works if you set a name for the image to be saved to

Just wondering how you fixed it ray?

**Wanted** · 09-11-2010, 06:00 AM

Originally Posted by mastaraymond

Fixed it.. (It worked when I created it, no doubt)

What caused it to break? I tried the original code and it didn't work either

**mastaraymond** · 09-11-2010, 11:01 AM

Originally Posted by IceFire908

What caused it to break? I tried the original code and it didn't work either

Code:

procedure DebugATPABounds(aPoints: array Of TPointArray);
var
  Width, Height, ClientBMP, I: Integer;
  B: TBox;
  BoxColors : Array Of Integer;
  SelColor: Integer;
{$IFDEF SIMBA}
  x,y : integer;
  BMP : Integer;
{$ENDIF}
begin
  GetClientDimensions(width,height);
  DisplayDebugImgWindow(Width, Height);
  BoxColors := [clRed, clBlue, clBlack, clGreen, clYellow];
{$IFDEF Simba}
  ClientBMP := BitmapFromClient(0,0,width-1,height-1);
{$ELSE}
  ClientBMP := BitmapFromString(Width, Height, '');
  CopyClientToBitmap(ClientBMP, 0, 0, width, height);
  SafeDrawBitmap(ClientBmp, GetDebugCanvas, 0, 0);
  GetDebugCanvas.Font.Style := [fsBold];
  GetDebugCanvas.Brush.Style := bsClear;
{$ENDIF}
  for i:= 0 to high(aPoints) do
  begin
    SelColor := BoxColors[Random(length(Boxcolors))];

    B := GetTPABounds(aPoints[i]);
  {$IFDEF Simba}
    for x := B.X1 to B.X2 do
    begin
      FastSetPixel(ClientBMP,x,B.y1,SelColor);
      FastSetPixel(ClientBMP,x,B.y2,SelColor);
    end;
    for y := B.y1 to B.y2 do
    begin
      FastSetPixel(ClientBMP,B.X1,y,SelColor);
      FastSetPixel(ClientBMP,B.X2,y,SelColor);
    end;
    BMP := BitmapFromText(inttostr(i),StatChars);
    FastReplaceColor(bmp,clblack,clyellow);
    FastReplaceColor(bmp,clwhite,clblack);
    SetTransparentColor(bmp,clYellow);
    FastDrawTransparent(B.x1 + 2,b.y1 + 2,bmp,clientbmp);
    FreeBitmap(BMP);
  {$ELSE}
    GetDebugCanvas.Pen.Color := SelColor;
    GetDebugCanvas.Font.Color := SelColor;
    GetDebugCanvas.Rectangle(B.x1,B.y1,B.x2,B.y2);
    GetDebugCanvas.TextOut(B.x1,B.y1,inttostr(i));
  {$ENDIF}
  end;
  {$IFDEF Simba}
  DrawBitmapDebugImg(clientBMP);
  {$ENDIF}
  FreeBitmap(ClientBmp);
end;

The original code rev 433.. Works, no?

**Wizzup?** · 09-11-2010, 11:07 AM

Originally Posted by IceFire908

What caused it to break? I tried the original code and it didn't work either

I'm pretty sure there has been no change in Simba itself. (If there was, you could have seen it in the source)

Log for Debug:

Code:

commit ca85febf21c627917dce86a80af21599e0b3545b
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Fri Sep 10 22:47:53 2010 +0000

    Fixed DebugATPABounds bug in Simba

    git-svn-id: http://villavu.com/repositories/srl-opendev@605 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 332d020d768b7e02e565ce1c76395f3b947b1168
Author: Coh3n <Coh3n@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Mon Jun 21 01:25:40 2010 +0000

    - Fixed compiling issues in Debug.scar (2 forgotten semicolons)


    git-svn-id: http://villavu.com/repositories/srl-opendev@540 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 1bf4059a57cca75485d1ec0298ebea20490fb523
Author: IceFire908 <IceFire908@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun Jun 20 18:33:43 2010 +0000

    DebugATPABounds fix simba portion by Nava2

    git-svn-id: http://villavu.com/repositories/srl-opendev@538 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 559f1150146b84398e1fd311badcc06cdd1be36b
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Wed May 12 13:23:18 2010 +0000

    Lamp solves perfectly, just needs to slow down a bit :). + Unused variable.

    git-svn-id: http://villavu.com/repositories/srl-opendev@489 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 2371149674e597d845abbe006c0c30aeca563999
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat May 8 22:57:08 2010 +0000

    Added ReadLn and edited the debugging methods a bit..

    git-svn-id: http://villavu.com/repositories/srl-opendev@470 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 63ab06c9d8748e7041bb1e0e7dc8181b616c65c7
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun Apr 11 19:20:20 2010 +0000

    Added some simba stuff :).

    git-svn-id: http://villavu.com/repositories/srl-opendev@433 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 7f0c4ca3cd09b7fd8e8beb817c0622a856e48240
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat Mar 27 23:01:39 2010 +0000

    Added other standard fixes, by Dgby714

    git-svn-id: http://villavu.com/repositories/srl-opendev@423 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 9fe4a1668a709be4ed6a11b3709187aed60c9b42
Author: IceFire908 <IceFire908@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Mon Mar 22 02:25:14 2010 +0000

    Made RandomID multi possible now, Fixed Forester, fixed Drag Item, cleaned up some DebugATPABounds mess lol. Rev 420.. epic pwnage

    git-svn-id: http://villavu.com/repositories/srl-opendev@420 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit cbe44f5e395a4d133fd76c8695203f43da050e58
Author: IceFire908 <IceFire908@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun Mar 21 19:31:11 2010 +0000

    LevelUp fix, Hopefully Arnav fix. Inventory standards fix, DeBugATPABounds fix

    git-svn-id: http://villavu.com/repositories/srl-opendev@419 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit f0246e846800770dd49e5a3fa783cef1b13c9253
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Wed Mar 3 15:55:13 2010 +0000

    Fixed issues where it would search outside the client.

    git-svn-id: http://villavu.com/repositories/srl-opendev@403 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 8e6e2b24ad9b5683a220db84cbd2afd01d9de181
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat Feb 6 18:22:39 2010 +0000

    More Simba changes.

    git-svn-id: http://villavu.com/repositories/srl-opendev@371 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit e0adaf68711dd9d27b499b90bff018c43433d822
Author: Nava2 <Nava2@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Wed Dec 30 22:13:41 2009 +0000

    Loads of shit fixed and updated.

    Worked with some small things, making the Color functions work in Color.scar.

    Removed some compiling errors in SmartColors.scar.

    Changed something in Debug.scar, to be honest I have no idea what it was.


    git-svn-id: http://villavu.com/repositories/srl-opendev@329 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit d066656c926eb4d18aecca7ae91e32dc1447eb91
Author: Nava2 <Nava2@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun Nov 29 01:01:02 2009 +0000

    Fixed small things that really made no sense..


    git-svn-id: http://villavu.com/repositories/srl-opendev@291 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 74c05a059dd96e5fd21f37d865f85b4cf360fef2
Author: EvilChicken! <EvilChicken!@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat Oct 17 00:55:15 2009 +0000

    Fixed.

    God, I can't do a single commit correctly these days.

    Sorry, guys.

    git-svn-id: http://villavu.com/repositories/srl-opendev@271 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 0345fa816109ed3e0608d1fc0f53e9740c7c0cd2
Author: EvilChicken! <EvilChicken!@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Fri Oct 16 09:34:16 2009 +0000

    Small changes, mostly TakeScreenShotEx.

    git-svn-id: http://villavu.com/repositories/srl-opendev@269 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 232bf1ddc4d263e6f1e18911a98c2106e351b196
Author: ZephyrsFury <ZephyrsFury@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Thu Sep 10 18:46:55 2009 +0000

    Stuff.

    git-svn-id: http://villavu.com/repositories/srl-opendev@235 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit b6fbf521502ebf7b444d8563e3dd957d57aedc30
Author: ZephyrsFury <ZephyrsFury@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat Jun 20 20:47:34 2009 +0000

    Minor edits. Added DebugBitmap to Debug.scar.

    git-svn-id: http://villavu.com/repositories/srl-opendev@88 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 8519792392734a00c08d417b0832a4fca8ab5e70
Author: Nava2 <Nava2@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun May 31 02:20:52 2009 +0000

    Added Fighting fixes.
    Changed TakeScreenshot

    git-svn-id: http://villavu.com/repositories/srl-opendev@34 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 947febf8aecb1f9a1b0ef87d286ffc5cc4214c5f
Author: Nava2 <Nava2@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat May 23 14:23:17 2009 +0000

    Exiting Mordaut should be fixed.. Not sure.

    Close Window, needs some testing..

    I broked DebugATPABounds, its in the text writing, someone look at it please.

    git-svn-id: http://villavu.com/repositories/srl-opendev@11 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit b286550bc6df862a3c76f00992c1b3aa86f8625f
Author: Wizzup? <Wizzup?@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Mon May 18 20:19:48 2009 +0000

    Recommit.


    git-svn-id: http://villavu.com/repositories/srl-opendev@1 6aa993dd-eb45-4ab4-881a-589510b4aab8

**Bobzilla69** · 09-11-2010, 11:18 AM

Originally Posted by mastaraymond

Fixed it.. (It worked when I created it, no doubt)

i can confirm it now works for me, both in scar (wasnt broken there) and in Simba.

thanks alot for the fix

**Wanted** · 09-12-2010, 06:00 AM

Originally Posted by mastaraymond

Code:

procedure DebugATPABounds(aPoints: array Of TPointArray);
var
  Width, Height, ClientBMP, I: Integer;
  B: TBox;
  BoxColors : Array Of Integer;
  SelColor: Integer;
{$IFDEF SIMBA}
  x,y : integer;
  BMP : Integer;
{$ENDIF}
begin
  GetClientDimensions(width,height);
  DisplayDebugImgWindow(Width, Height);
  BoxColors := [clRed, clBlue, clBlack, clGreen, clYellow];
{$IFDEF Simba}
  ClientBMP := BitmapFromClient(0,0,width-1,height-1);
{$ELSE}
  ClientBMP := BitmapFromString(Width, Height, '');
  CopyClientToBitmap(ClientBMP, 0, 0, width, height);
  SafeDrawBitmap(ClientBmp, GetDebugCanvas, 0, 0);
  GetDebugCanvas.Font.Style := [fsBold];
  GetDebugCanvas.Brush.Style := bsClear;
{$ENDIF}
  for i:= 0 to high(aPoints) do
  begin
    SelColor := BoxColors[Random(length(Boxcolors))];

    B := GetTPABounds(aPoints[i]);
  {$IFDEF Simba}
    for x := B.X1 to B.X2 do
    begin
      FastSetPixel(ClientBMP,x,B.y1,SelColor);
      FastSetPixel(ClientBMP,x,B.y2,SelColor);
    end;
    for y := B.y1 to B.y2 do
    begin
      FastSetPixel(ClientBMP,B.X1,y,SelColor);
      FastSetPixel(ClientBMP,B.X2,y,SelColor);
    end;
    BMP := BitmapFromText(inttostr(i),StatChars);
    FastReplaceColor(bmp,clblack,clyellow);
    FastReplaceColor(bmp,clwhite,clblack);
    SetTransparentColor(bmp,clYellow);
    FastDrawTransparent(B.x1 + 2,b.y1 + 2,bmp,clientbmp);
    FreeBitmap(BMP);
  {$ELSE}
    GetDebugCanvas.Pen.Color := SelColor;
    GetDebugCanvas.Font.Color := SelColor;
    GetDebugCanvas.Rectangle(B.x1,B.y1,B.x2,B.y2);
    GetDebugCanvas.TextOut(B.x1,B.y1,inttostr(i));
  {$ENDIF}
  end;
  {$IFDEF Simba}
  DrawBitmapDebugImg(clientBMP);
  {$ENDIF}
  FreeBitmap(ClientBmp);
end;

The original code rev 433.. Works, no?

Nope

Originally Posted by Wizzup?

I'm pretty sure there has been no change in Simba itself. (If there was, you could have seen it in the source)

Log for Debug:

Code:

commit ca85febf21c627917dce86a80af21599e0b3545b
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Fri Sep 10 22:47:53 2010 +0000

    Fixed DebugATPABounds bug in Simba

    git-svn-id: http://villavu.com/repositories/srl-opendev@605 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 332d020d768b7e02e565ce1c76395f3b947b1168
Author: Coh3n <Coh3n@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Mon Jun 21 01:25:40 2010 +0000

    - Fixed compiling issues in Debug.scar (2 forgotten semicolons)


    git-svn-id: http://villavu.com/repositories/srl-opendev@540 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 1bf4059a57cca75485d1ec0298ebea20490fb523
Author: IceFire908 <IceFire908@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun Jun 20 18:33:43 2010 +0000

    DebugATPABounds fix simba portion by Nava2

    git-svn-id: http://villavu.com/repositories/srl-opendev@538 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 559f1150146b84398e1fd311badcc06cdd1be36b
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Wed May 12 13:23:18 2010 +0000

    Lamp solves perfectly, just needs to slow down a bit :). + Unused variable.

    git-svn-id: http://villavu.com/repositories/srl-opendev@489 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 2371149674e597d845abbe006c0c30aeca563999
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat May 8 22:57:08 2010 +0000

    Added ReadLn and edited the debugging methods a bit..

    git-svn-id: http://villavu.com/repositories/srl-opendev@470 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 63ab06c9d8748e7041bb1e0e7dc8181b616c65c7
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun Apr 11 19:20:20 2010 +0000

    Added some simba stuff :).

    git-svn-id: http://villavu.com/repositories/srl-opendev@433 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 7f0c4ca3cd09b7fd8e8beb817c0622a856e48240
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat Mar 27 23:01:39 2010 +0000

    Added other standard fixes, by Dgby714

    git-svn-id: http://villavu.com/repositories/srl-opendev@423 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 9fe4a1668a709be4ed6a11b3709187aed60c9b42
Author: IceFire908 <IceFire908@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Mon Mar 22 02:25:14 2010 +0000

    Made RandomID multi possible now, Fixed Forester, fixed Drag Item, cleaned up some DebugATPABounds mess lol. Rev 420.. epic pwnage

    git-svn-id: http://villavu.com/repositories/srl-opendev@420 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit cbe44f5e395a4d133fd76c8695203f43da050e58
Author: IceFire908 <IceFire908@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun Mar 21 19:31:11 2010 +0000

    LevelUp fix, Hopefully Arnav fix. Inventory standards fix, DeBugATPABounds fix

    git-svn-id: http://villavu.com/repositories/srl-opendev@419 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit f0246e846800770dd49e5a3fa783cef1b13c9253
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Wed Mar 3 15:55:13 2010 +0000

    Fixed issues where it would search outside the client.

    git-svn-id: http://villavu.com/repositories/srl-opendev@403 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 8e6e2b24ad9b5683a220db84cbd2afd01d9de181
Author: Raymond <Raymond@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat Feb 6 18:22:39 2010 +0000

    More Simba changes.

    git-svn-id: http://villavu.com/repositories/srl-opendev@371 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit e0adaf68711dd9d27b499b90bff018c43433d822
Author: Nava2 <Nava2@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Wed Dec 30 22:13:41 2009 +0000

    Loads of shit fixed and updated.

    Worked with some small things, making the Color functions work in Color.scar.

    Removed some compiling errors in SmartColors.scar.

    Changed something in Debug.scar, to be honest I have no idea what it was.


    git-svn-id: http://villavu.com/repositories/srl-opendev@329 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit d066656c926eb4d18aecca7ae91e32dc1447eb91
Author: Nava2 <Nava2@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun Nov 29 01:01:02 2009 +0000

    Fixed small things that really made no sense..


    git-svn-id: http://villavu.com/repositories/srl-opendev@291 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 74c05a059dd96e5fd21f37d865f85b4cf360fef2
Author: EvilChicken! <EvilChicken!@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat Oct 17 00:55:15 2009 +0000

    Fixed.

    God, I can't do a single commit correctly these days.

    Sorry, guys.

    git-svn-id: http://villavu.com/repositories/srl-opendev@271 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 0345fa816109ed3e0608d1fc0f53e9740c7c0cd2
Author: EvilChicken! <EvilChicken!@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Fri Oct 16 09:34:16 2009 +0000

    Small changes, mostly TakeScreenShotEx.

    git-svn-id: http://villavu.com/repositories/srl-opendev@269 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 232bf1ddc4d263e6f1e18911a98c2106e351b196
Author: ZephyrsFury <ZephyrsFury@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Thu Sep 10 18:46:55 2009 +0000

    Stuff.

    git-svn-id: http://villavu.com/repositories/srl-opendev@235 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit b6fbf521502ebf7b444d8563e3dd957d57aedc30
Author: ZephyrsFury <ZephyrsFury@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat Jun 20 20:47:34 2009 +0000

    Minor edits. Added DebugBitmap to Debug.scar.

    git-svn-id: http://villavu.com/repositories/srl-opendev@88 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 8519792392734a00c08d417b0832a4fca8ab5e70
Author: Nava2 <Nava2@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sun May 31 02:20:52 2009 +0000

    Added Fighting fixes.
    Changed TakeScreenshot

    git-svn-id: http://villavu.com/repositories/srl-opendev@34 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit 947febf8aecb1f9a1b0ef87d286ffc5cc4214c5f
Author: Nava2 <Nava2@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Sat May 23 14:23:17 2009 +0000

    Exiting Mordaut should be fixed.. Not sure.

    Close Window, needs some testing..

    I broked DebugATPABounds, its in the text writing, someone look at it please.

    git-svn-id: http://villavu.com/repositories/srl-opendev@11 6aa993dd-eb45-4ab4-881a-589510b4aab8

commit b286550bc6df862a3c76f00992c1b3aa86f8625f
Author: Wizzup? <Wizzup?@6aa993dd-eb45-4ab4-881a-589510b4aab8>
Date:   Mon May 18 20:19:48 2009 +0000

    Recommit.


    git-svn-id: http://villavu.com/repositories/srl-opendev@1 6aa993dd-eb45-4ab4-881a-589510b4aab8

Maybe it never worked? I could of sworn I ran that thing in simba before.

**mastaraymond** · 09-12-2010, 05:02 PM

Originally Posted by IceFire908

Nope

Simba Code:

{$include SRL\SRL.scar}

{*******************************************************************************
function DebugATPABounds2(aPoints: T2DPointArray; BmpName: string): Boolean;
By: Wizzup? & lordsaturn
Description: Shows an image of the client, plotting each TPA's bounds as a box
             of different colour per TPA. If a name is specified, an image
             will be saved.
*******************************************************************************}
procedure DebugATPABounds2(aPoints: array Of TPointArray);
var
  Width, Height, ClientBMP, I: Integer;
  B: TBox;
  BoxColors : Array Of Integer;
  SelColor: Integer;
{$IFDEF SIMBA}
  x,y : integer;
  BMP : Integer;
{$ENDIF}
begin
  GetClientDimensions(width,height);
  DisplayDebugImgWindow(Width, Height);
  BoxColors := [clRed, clBlue, clBlack, clGreen, clYellow];
{$IFDEF Simba}
  ClientBMP := BitmapFromClient(0,0,width-1,height-1);
{$ELSE}
  ClientBMP := BitmapFromString(Width, Height, '');
  CopyClientToBitmap(ClientBMP, 0, 0, width, height);
  SafeDrawBitmap(ClientBmp, GetDebugCanvas, 0, 0);
  GetDebugCanvas.Font.Style := [fsBold];
  GetDebugCanvas.Brush.Style := bsClear;
{$ENDIF}
  for i:= 0 to high(aPoints) do
  begin
    SelColor := BoxColors[Random(length(Boxcolors))];

    B := GetTPABounds(aPoints[i]);
  {$IFDEF Simba}
    for x := B.X1 to B.X2 do
    begin
      FastSetPixel(ClientBMP,x,B.y1,SelColor);
      FastSetPixel(ClientBMP,x,B.y2,SelColor);
    end;
    for y := B.y1 to B.y2 do
    begin
      FastSetPixel(ClientBMP,B.X1,y,SelColor);
      FastSetPixel(ClientBMP,B.X2,y,SelColor);
    end;
    BMP := BitmapFromText(inttostr(i),StatChars);
    FastReplaceColor(bmp,clblack,clyellow);
    FastReplaceColor(bmp,clwhite,clblack);
    SetTransparentColor(bmp,clYellow);
    FastDrawTransparent(B.x1 + 2,b.y1 + 2,bmp,clientbmp);
    FreeBitmap(BMP);
  {$ELSE}
    GetDebugCanvas.Pen.Color := SelColor;
    GetDebugCanvas.Font.Color := SelColor;
    GetDebugCanvas.Rectangle(B.x1,B.y1,B.x2,B.y2);
    GetDebugCanvas.TextOut(B.x1,B.y1,inttostr(i));
  {$ENDIF}
  end;
  {$IFDEF Simba}
  DrawBitmapDebugImg(clientBMP);
  {$ENDIF}
  FreeBitmap(ClientBmp);
end;

var
  TPA: TPointArray;
  ATPA: T2DPointArray;

begin
  SetUpSRL;
  TPA := TPAFromBox(IntToBox(0, 0, 500, 500));
  ATPA := TPAToATPAEx(TPA, 10, 10);
  DebugATPABounds2(ATPA);
end.

Thread: DebugATPABounds

Thread Tools

DebugATPABounds

Thread Information

Users Browsing this Thread

Posting Permissions
