Thread: Fractal drawer!

  1. #1
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default Fractal drawer!

    This script generates a fractal image that can be zoomed into infinitely without losing detail.

    Version 2 is now up!
    Simba version is now up!

    What is a fractal?
    There are many ways to define fractal, but my own perception would be something like... An object with infinite complexity that is self repeating. Each piece of a fractal, no matter how small, is a part of the whole.
    Fractals have only just recently discovered a new form of math called "fractal geometry"
    I would recommend watching this documentary on fractals to be able to understand what they are - http://www.youtube.com/watch?v=qB8m85p7GsU It changed the way I think of everything.
    Or this documentary that has more to do with how fractals are found in nature - http://www.streaming-madness.net/wat...den-dimension/

    How do I use the plugin?
    Download the Coloration.rar and open up your plugins folder for SCAR.
    It should be something like "C:\Program Files\SCAR\Plugins" for scar and something like "C:\Simba\Plugins" for simba.
    Paste or drag the Coloration.dll into this folder and you're done.

    Using the form
    Zooming
    Clicking on the image will zoom in by the number in "Zoom Amount"
    Right clicking will zoom out by the same amount.
    Changing the "Size" box is also a form of zooming in. Increasing the size will not show a larger area of the fractal, but will show a much more up close view and more detail.

    Navigating
    Pressing one of the four arrow buttons will move the fractal in that direction.
    The "Shift Amount" box tells how much to move the fractal when an arrow is clicked.
    If the checkbox beside it is checked, it will shift by a percent instead of a number of pixels.
    The x and y box contain the center point of the rendering (starting out at the origin, (0, 0))

    Detail tab
    The minimum, average, and maximum boxes are read only and show you the range of iterations found in the fractal.
    These numbers can be used to know what to set other settings at to get the best detail in your picture.

    The "Max Iterations" box is how many "iterations" or loops are done for each pixel (at max). The max number may never be met though, for example if you set the max iterations to 10,000 but the highest needed iteration found was only 1000 then you could have set the max iterations to only 1000 and had the same result. And in this case if you were to increase the max iterations all the way up to a million it still wouldn't take any longer to render.
    To know if you need to raise the "max iterations", look at the maximum box. If this number is close to the "max iterations" then you will most likely need to raise it to show the image's full detail.

    The "Pixel Size" box tells how big to draw each pixel. It is recommended to leave at 1, unless you are just cruising around the fractal looking for an interesting spot. Increasing the pixel size makes it render more quickly at the cost of some detail.

    The "Stretch" box will stretch the image by x amount of pixels. This should only be used for viewing a certain area of a fractal on a larger scale, but not for navigating around because it offsets the center points.
    Basically this is a way to make the fractal larger but not increase the rendering time, although it does not increase the detail either.

    Color Tab
    (For the time being, the two buttons on the color tab only work in the scar version)
    The colors used are in a color palette that is created based on the "Colors" box and the "Starting Color" box.
    The palette goes through every hue from 0-100 and for each hue the luminance goes from 0-100.
    The "Colors" box tells how many colors are in the palette.
    The "Color Start" box is what color the palette starts at.
    The "Change Zero Color" button will change the color of pixels that are not in the "set". The default color is black.
    The "Change Form Color" button simply changes the background color.

    Detail vs Speed
    If you are looking for the best detail (this is how the amazing images are found) here are the settings you need -
    Set the size to as big as you can, the larger the more wait though.
    I like to set it around 500 once I've found something interesting.
    Max iterations needs to be just above the maximum found iteration of the image (you have to figure this part)
    Pixel size - 1, Stretch - 0, Fast mode off
    Color start and amount don't change detail.
    Anti aliasing set to all is a lot of times the best option but it depends on the fractal you are rendering.

    If you are just trying to navigate around and explore here are some fast rendering options -
    Size - 100, Max Iterations - 1000, Pixel Size - 2 or 3ish, Stretch - 0, fast mode on, anti alias off

    Extras
    (For the time being most of the extras only work in the scar version)
    The box that contains the 3 tabs and also the box that has the "draw" button on it can be moved by holding down the mouse.
    Each of the 3 tabs can be dragged from the main box and dropped anywhere you want and you will have a separate box for that tab.
    If you drag a tab off the main box and want it to go back, simply drag it back onto the main box and it will attach itself again.

    So that's about it. If you have any questions about it ask away.
    I've had a lot of fun with this program just exploring the never ending possibilities. And it has been one of my longest/hardest projects ever so I hope you all enjoy

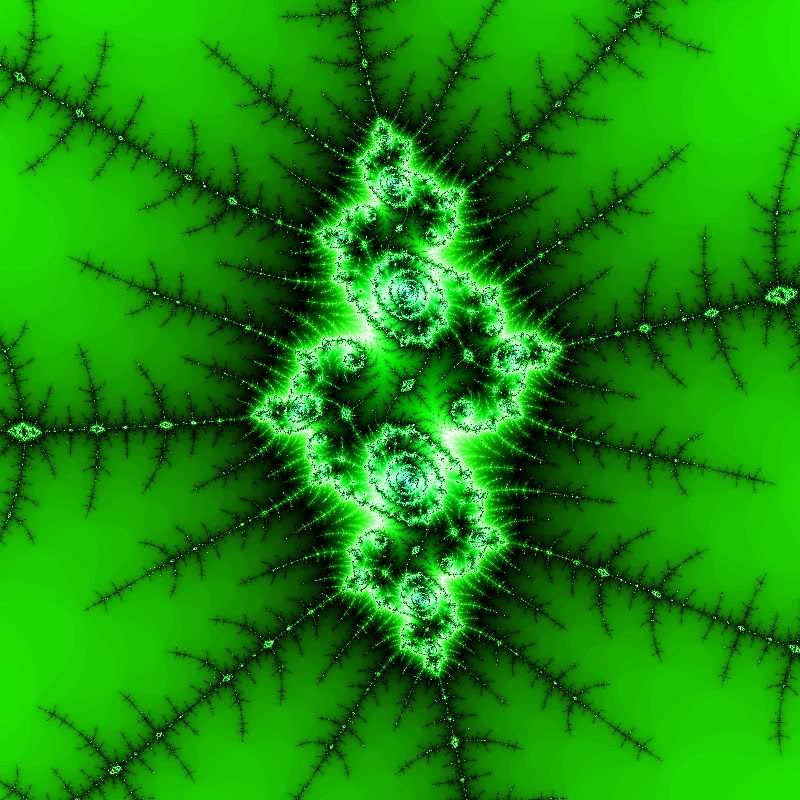

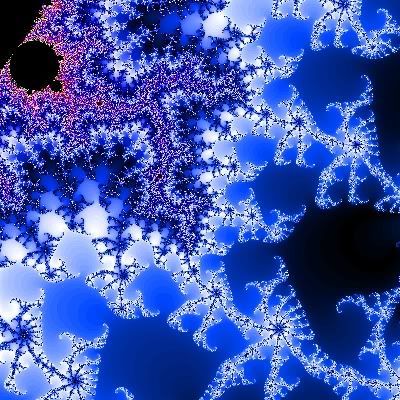

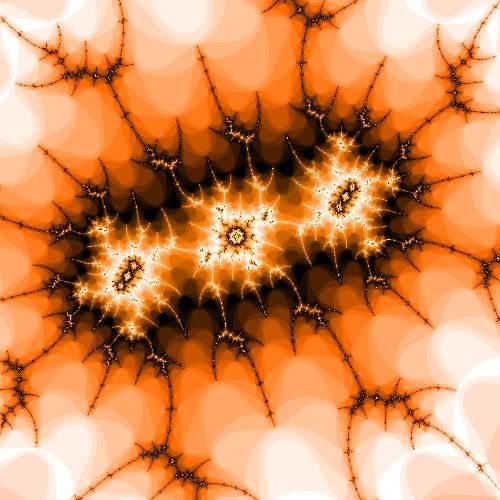

    Here are a couple of interesting pics I found in the process of making this -
    These first 2 are the same with a different "Color Start" to show how that changes the fractal-
    http://i200.photobucket.com/albums/a...ronikel/12.jpg
    http://i200.photobucket.com/albums/a...ronikel/11.jpg

    http://i200.photobucket.com/albums/a...ronikel/13.jpg
    http://i200.photobucket.com/albums/a...ronikel/14.jpg
    http://i200.photobucket.com/albums/a...ronikel/10.jpg

    And here is the source for the plugin, if you don't feel like downloading the plugin you can paste this function in (but it will take a LOT longer to draw)
    SCAR Code:
    function ColorPoint(px, py: extended; MaxIteration: integer): integer; stdcall;
    var
      x, y, xtemp: extended;
    begin
      x:= px;
      y:= py;
      repeat
        xtemp:= x*x - y*y + px;
        y:= 2*x*y + py;
        x:= xtemp;
        Result:= Result + 1;
      until((x*x + y*y >= 4) or (Result > MaxIteration));
      if (Result = MaxIteration) then
      Result:= 0;
    end;

  2. #2
    Join Date
    May 2007
    Location
    Everywhere
    Posts
    1,428
    Mentioned
    0 Post(s)
    Quoted
    2 Post(s)

  3. #3
    Join Date
    Mar 2006
    Location
    Behind you
    Posts
    3,193
    Mentioned
    61 Post(s)
    Quoted
    63 Post(s)

    Default

    I'm on video 4 of 6 of "The colors of Infinity" it's a really awesome series I recomend the everyone Watch the Video. It's intriguing beyond what you'd imagine.

    ~BraK

    E: cstrike did you watch the videos?

    "Sometimes User's don't need the Answer spelled out with Code. Sometimes all they need is guidance and explanation of the logic to get where they are going."

  4. #4
    Join Date
    Nov 2010
    Posts
    7
    Mentioned
    0 Post(s)
    Quoted
    0 Post(s)

    Default

    Yes they are quite interesting.
    I've been studying them ever since I first watched the videos.

    edit: lol I logged in on the wrong account.
    Got so used to using this one.

  5. #5
    Join Date
    May 2007
    Location
    Everywhere
    Posts
    1,428
    Mentioned
    0 Post(s)
    Quoted
    2 Post(s)

    Default

    Didn,t looked at the pictures

    Also the file that was uploaded cant compile (on Simba?)

  6. #6
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    I gave up with simba.
    IMO it is a slower version of scar with less functions, a lot of which are needed to run this.

  7. #7
    Join Date
    Mar 2006
    Location
    Behind you
    Posts
    3,193
    Mentioned
    61 Post(s)
    Quoted
    63 Post(s)

    Default

    Which Functions are needed that simba doesn't have?

    ~BraK

    "Sometimes User's don't need the Answer spelled out with Code. Sometimes all they need is guidance and explanation of the logic to get where they are going."

  8. #8
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    Not entirely sure but I know a lot of thins that have to do with canvases and bitmaps.
    Such as CopyCanvas, which I'm not sure how you could recreate that yourself.
    Also some things involved in making the form would have to change.
    I had a working simba version at one point but I didn't like it.

  9. #9
    Join Date
    Sep 2006
    Location
    New Jersey, USA
    Posts
    5,347
    Mentioned
    1 Post(s)
    Quoted
    3 Post(s)

    Default

    Tried to get this working in simba, got stuck at GetBitmapCanvas. Anyone?
    Interested in C# and Electrical Engineering? This might interest you.

  10. #10
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    I got around this by not using a bitmap at all.
    You can use Form.Canvas.Pixels[x, y] instead of Bmp.Canvas.Pixels[x, y]
    But that requires redoing a lot of the script.

    And the only reason I used a bitmap to begin with is so the Form.OnPaint can paste the bitmap.
    You can downsize the form or move things on top of the image without the image disappearing.

  11. #11
    Join Date
    Jul 2007
    Location
    Norway.
    Posts
    1,938
    Mentioned
    3 Post(s)
    Quoted
    0 Post(s)

    Default

    Quote Originally Posted by almost2 View Post
    Yes they are quite interesting.
    I've been studying them ever since I first watched the videos.

    edit: lol I logged in on the wrong account.
    Got so used to using this one.
    Just a bit offtopic, excuse me for it -- but can I ban this account now that you've gotten your old one back?


    As for the drawer, it looks really neat from the pictures; I'll take a look at the actual files tomorrow.
    I assume the source is included? I hope to learn something from it..

  12. #12
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    Yes feel free to ban the old one there's no point in having it around.

    The source for the plugin is shown and it's actually only a few lines.
    But that's where the magic happens.

    The function is called Coloration and it takes a point and does iterations on it until it either reaches 0 or until it has determined it will reach infinity.
    If it reached 0 it is colored what I call in this script the "zero color" (which is black by default) and if it does not then it gets colored a certain color based on how many loops it went through to determine that point would be infinity.
    The equation for making a fractal is "z = z^2 + c"
    Because z is on the left AND right side of the equation, the output of each loop becomes the input for the next one.
    if z starts at 1 and c is 2 you would get a loop looking like
    z = 1^2 + 2 (z = 3)
    z = 3^2 + 2 (z = 11)
    z = 11^2 + 2 (z = 123)
    And in this example it quickly speeds off into infinity

  13. #13
    Join Date
    Jan 2008
    Location
    Ontario, Canada
    Posts
    7,805
    Mentioned
    5 Post(s)
    Quoted
    3 Post(s)

    Default

    Quote Originally Posted by almost View Post
    Not entirely sure but I know a lot of thins that have to do with canvases and bitmaps.
    Such as CopyCanvas, which I'm not sure how you could recreate that yourself.
    Also some things involved in making the form would have to change.
    I had a working simba version at one point but I didn't like it.
    There is so much wrong with these statements..

    So, canvases are silly and not cross compatible. To work with canvases, you instead work with bitmaps.

    Check out: http://git.villavu.com/?p=simba.git;...01d414;hb=HEAD

    The main thing to look at is this:
    pascal Code:
    TMufasaBitmap = class(TObject)
      private
        w,h : integer;
        FTransparentColor : TRGB32;
        FTransparentSet : boolean;
        FIndex : integer;
        FName : string;
      public
        OnDestroy : procedure(Bitmap : TMufasaBitmap) of object;
        //FakeData : array of TRGB32;
        FData : PRGB32;
        property Name : string read FName write FName;
        property Index : integer read FIndex write FIndex;
        procedure SetSize(AWidth,AHeight : integer);
        procedure StretchResize(AWidth,AHeight : integer);
        property Width : Integer read w;
        property Height : Integer read h;
        procedure ValidatePoint(x,y : integer);
        function SaveToFile(const FileName : string) :boolean;
        procedure LoadFromFile(const FileName : string);
        procedure Rectangle(const Box : TBox;FillCol : TColor);
        procedure FloodFill(const StartPT : TPoint; const SearchCol, ReplaceCol : TColor);
        procedure FastSetPixel(x,y : integer; Color : TColor);
        procedure FastSetPixels(Points : TPointArray; Colors : TIntegerArray);
        procedure DrawATPA(ATPA : T2DPointArray; Colors : TIntegerArray);overload;
        procedure DrawATPA(ATPA : T2DPointArray);overload;
        procedure DrawTPA(Points : TPointArray; Color : TColor);
        procedure DrawToCanvas(x,y : integer; Canvas : TCanvas);
        function CreateTPA(SearchCol : TColor) : TPointArray;
        function FastGetPixel(x,y : integer) : TColor;
        function FastGetPixels(Points : TPointArray) : TIntegerArray;
        function GetAreaColors(xs,ys,xe,ye : integer) : T2DIntArray;
        procedure FastDrawClear(Color : TColor);
        procedure FastDrawTransparent(x, y: Integer; TargetBitmap: TMufasaBitmap);
        procedure FastReplaceColor(OldColor, NewColor: TColor);
        procedure CopyClientToBitmap(MWindow : TObject;Resize : boolean; xs, ys, xe, ye: Integer);overload;
        procedure CopyClientToBitmap(MWindow : TObject;Resize : boolean;x,y : integer; xs, ys, xe, ye: Integer);overload;
        procedure RotateBitmap(angle: Extended;TargetBitmap : TMufasaBitmap );
        procedure Desaturate(TargetBitmap : TMufasaBitmap); overload;
        procedure Desaturate;overload;
        procedure GreyScale(TargetBitmap : TMufasaBitmap);overload;
        procedure GreyScale;
        procedure Brightness(TargetBitmap : TMufasaBitmap; br : integer); overload;
        procedure Brightness(br: integer);overload;
        procedure Contrast(TargetBitmap : TMufasaBitmap; co : Extended);overload;
        procedure Contrast(co: Extended);overload;
        procedure Invert(TargetBitmap : TMufasaBitmap);overload;
        procedure Invert;overload;
        procedure Posterize(TargetBitmap : TMufasaBitmap; Po : integer);overload;
        procedure Posterize(Po : integer);overload;
        function Copy(const xs,ys,xe,ye : integer) : TMufasaBitmap; overload;
        function Copy: TMufasaBitmap;overload;
        function ToTBitmap: TBitmap;
        function ToString : string;
        procedure LoadFromTBitmap(bmp: TBitmap);
        procedure LoadFromRawImage(RawImage: TRawImage);
        function CreateTMask : TMask;
        procedure SetTransparentColor(Col : TColor);
        function GetTransparentColor : TColor;
        property TransparentColorSet : boolean read FTransparentSet;
        procedure SetAlphaValue(const value : byte);
        constructor Create;
        destructor Destroy;override;
      end;

    ALL of those methods are attached to the Bitmap. This allows you to use TMBitmaps in simba! You can do everything with canvases with a bitmap. You merely display the bitmap after. In fact, it will be faster in Simba.

    Simba as a whole is actually faster than SCAR. If its not fast enough, make it faster in a plugin. I guarantee you will not be disappointed.
    Writing an SRL Member Application | [Updated] Pascal Scripting Statements
    My GitHub

    Progress Report:
    13:46 <@BenLand100> <SourceCode> @BenLand100: what you have just said shows you
                        have serious physchological problems
    13:46 <@BenLand100> HE GETS IT!
    13:46 <@BenLand100> HE FINALLY GETS IT!!!!1

  14. #14
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    I like this.
    I figured simba didn't use canvases at all.
    I'll give it a try and I have a feeling it might be faster in some ways.

    What killed me was that in simba you click on the Bitmap section and it shows some functions you can do and I could only assume those were all of them but apparently there are plenty more.

  15. #15
    Join Date
    Jan 2008
    Location
    Ontario, Canada
    Posts
    7,805
    Mentioned
    5 Post(s)
    Quoted
    3 Post(s)

    Default

    Quote Originally Posted by almost View Post
    I like this.
    I figured simba didn't use canvases at all.
    I'll give it a try and I have a feeling it might be faster in some ways.

    What killed me was that in simba you click on the Bitmap section and it shows some functions you can do and I could only assume those were all of them but apparently there are plenty more.
    If you create a TMBitmap by using.. some function I cannot remember, you have access to all of those. You can treat it as an object!
    Writing an SRL Member Application | [Updated] Pascal Scripting Statements
    My GitHub

    Progress Report:
    13:46 <@BenLand100> <SourceCode> @BenLand100: what you have just said shows you
                        have serious physchological problems
    13:46 <@BenLand100> HE GETS IT!
    13:46 <@BenLand100> HE FINALLY GETS IT!!!!1

  16. #16
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    Version 2 is now up!
    This version is much faster and at least 1000 times better looking!
    It uses a color palette rather than a color algorithm to map colors.

    So what changed?
    No more fast mode option, because it's always in fast mode now
    Much more detail available, the color palette has luminance now to greatly increase contrast
    No more anti alias option, as it won't be needed now

    The same plugin is used though, so if you downloaded the first version you should definitely give the new one a go.

    New pictures have been added to the first post to show the new results =)

  17. #17
    Join Date
    Jan 2007
    Posts
    8,876
    Mentioned
    123 Post(s)
    Quoted
    327 Post(s)

    Default

    Wow.
    This is truly amazing, almost
    Good job! Looks amazing!!
    It's a shame I don't have scar installed on this computer... I'll have to install it now though
    EDIT: I got 3.25 Alpha now.. What version do you use?
    Last edited by Zyt3x; 12-03-2010 at 11:03 PM.

  18. #18
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    I made this on SCAR 3.21 but I would assume it still works on the newest versions.

  19. #19
    Join Date
    Jan 2007
    Posts
    8,876
    Mentioned
    123 Post(s)
    Quoted
    327 Post(s)

    Default

    Quote Originally Posted by almost View Post
    I made this on SCAR 3.21 but I would assume it still works on the newest versions.
    It doesn't
    Execution error at line 879.. I had to edit a few lines (add some round()'s and some parameters...)

  20. #20
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    But did you get it running?
    I suppose I should release a simba version.

  21. #21
    Join Date
    Sep 2006
    Location
    New Jersey, USA
    Posts
    5,347
    Mentioned
    1 Post(s)
    Quoted
    3 Post(s)

    Default

    Quote Originally Posted by almost View Post
    I suppose I should release a simba version.
    Please!!
    Interested in C# and Electrical Engineering? This might interest you.

  22. #22
    Join Date
    Dec 2006
    Location
    Houston, TX USA
    Posts
    4,791
    Mentioned
    0 Post(s)
    Quoted
    0 Post(s)

    Default

    Here's a pretty easy patch for SCAR 3.25 beta

    Code:
    --- C:/Users/James/AppData/Local/Temp/Left.txt-revBASE.svn000.tmp.txt	Sat Dec  4 03:30:06 2010
    +++ C:/Users/James/Documents/wtf/Left.txt	Sat Dec  4 03:29:49 2010
    @@ -36,9 +36,6 @@
     end;


    -
    -
    -
     function MaxArray(a: TIntegerArray): integer;
     var
       i: integer;
    @@ -81,7 +78,7 @@
         Result:= Result + a[i];
         c:= c + 1;
       end;
    -  Result:= (Result / c);
    +  Result:= (Result div c);
     end;


    @@ -102,7 +99,7 @@
     function ColorIndex(Iteration: integer): integer;
     begin
       if (Iteration >= GetArrayLength(Colors)) then
    -  Iteration:= (Iteration - (GetArrayLength(Colors) * (Iteration / GetArrayLength(Colors))));
    +  Iteration:= (Iteration - (GetArrayLength(Colors) * (Iteration div GetArrayLength(Colors))));
       Result:= Colors[Iteration];
     end;

    @@ -270,7 +267,7 @@
       mx:= StrToFloat(cxBox.Text);
       my:= StrToFloat(cyBox.Text);
       RealToImaginary(x, y, ix, iy);
    -  RealToImaginary(Size / 2 - 1, Size / 2 - 1, ix2, iy2);
    +  RealToImaginary(Size div 2 - 1, Size div 2 - 1, ix2, iy2);
       mx:= mx + (ix - ix2);
       my:= my + (iy - iy2);
       if Side then
    @@ -543,13 +540,13 @@
     begin
       case Sender of
         Settings:
    -    Settings.BeginDrag(False);
    +    Settings.BeginDrag(False, 32);
         NewImage:
    -    NewImage.BeginDrag(False);
    +    NewImage.BeginDrag(False, 32);
         NewDetail:
    -    NewDetail.BeginDrag(False);
    +    NewDetail.BeginDrag(False, 32);
         NewColor:
    -    NewColor.BeginDrag(False);
    +    NewColor.BeginDrag(False, 32);
       end;
     end;

  23. #23
    Join Date
    Feb 2006
    Location
    Amsterdam
    Posts
    13,692
    Mentioned
    146 Post(s)
    Quoted
    130 Post(s)

    Default

    Quote Originally Posted by almost View Post
    But did you get it running?
    I suppose I should release a simba version.
    You should know that we didn't use a system similar to SCAR's on purpose because canvas is slow. Simba methods are faster. They just require a different approach. Perhaps someone (me?) can write a tutorial on it later.

    I'm not exactly sure what you use CopyCancas for but it is easily replaced with other methods. What other canvas methods do you use?

    Remember that Simba also has canvas:
    Simba Code:
    program new;
    var a: TBitmap;
    begin
    a:=TBitmap.Create;
    a.Canvas.Pen.Color := clRed;
    end.

    And I think TBitmap and TMufasaBitmap are quite interchangeable. TMufasaBitmap has methods to convert to and from TBitmap, although I currently miss the "LoadFromTBitmap" in the interpreter.
    Last edited by Wizzup?; 12-04-2010 at 11:08 AM.



    The best way to contact me is by email, which you can find on my website: http://wizzup.org
    I also get email notifications of private messages, though.

    Simba (on Twitter | Group on Villavu | Website | Stable/Unstable releases
    Documentation | Source | Simba Bug Tracker on Github and Villavu )


    My (Blog | Website)

  24. #24
    Join Date
    Jan 2007
    Posts
    8,876
    Mentioned
    123 Post(s)
    Quoted
    327 Post(s)

    Default

    Thanks IceFire!
    I did NewColor.BeginDrag(False, 0); instead of NewColor.BeginDrag(False, 32);

  25. #25
    Join Date
    Jan 2007
    Location
    Tennessee
    Posts
    642
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    I understand how to use bitmaps in simba now.
    Bitmaps are objects which I like better.
    Shouldn't take but a few minutes to convert to simba.
    I wanted to convert to c++ first though, and I just got done with that.
    Which is very nice, I can do a full screen rendering in a couple seconds.

    Also keep in mind if you have issues with the events like Drag you can take those out.
    Dragging and dropping tabs isn't necessary I just liked having it.

Page 1 of 2 12 LastLast

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
