Thread: Click on object(trap)

  1. #1
    Join Date
    Jun 2007
    Posts
    117
    Mentioned
    0 Post(s)
    Quoted
    16 Post(s)

    Default Click on object(trap)

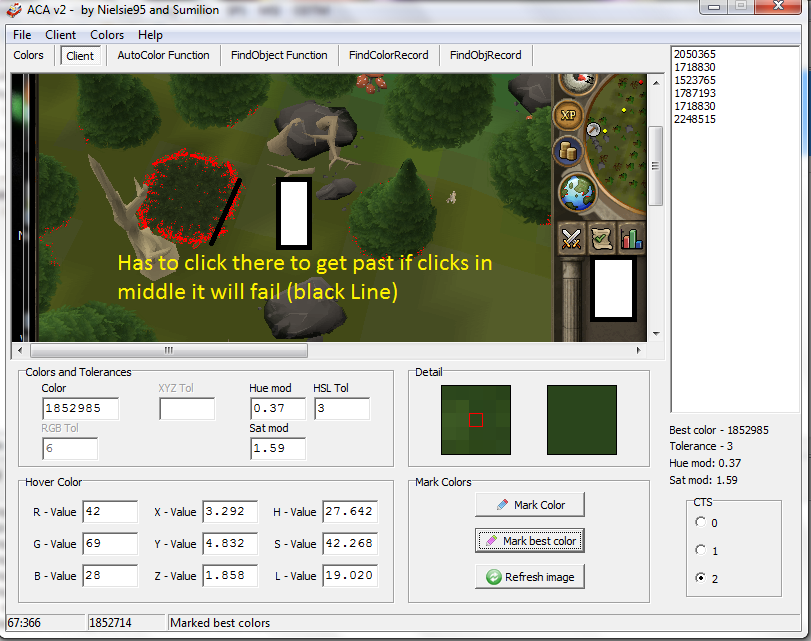

    I'm having trouble getting my script to click on a certain area, the script needs to click on the area put in the picture in order to make i across the trap if it clicks in the middle or anywhere else but that area i defined it will fail. This is really holding my script back any help is greatly appreciated!




    Some things that may help


    AutoColor

    Simba Code:
    function AutoColor: Integer;
    var
      arP: TPointArray;
      arC: TIntegerArray;
      tmpCTS, i, arL: Integer;
      R, G, B: Integer;
      X, Y, Z: Extended;
    begin
      tmpCTS := GetColorToleranceSpeed;
      ColorToleranceSpeed(2);
      SetColorSpeed2Modifiers(0.37, 1.59);

      FindColorsSpiralTolerance(MSCX, MSCY, arP, 1852985, MSX1, MSY1, MSX2, MSY2, 3);
      if (Length(arP) = 0) then
      begin
        Writeln('Failed to find the color, no result.');
        ColorToleranceSpeed(tmpCTS);
        SetColorSpeed2Modifiers(0.2, 0.2);
        Exit;
      end;

      arC := GetColors(arP);
      ClearSameIntegers(arC);
      arL := High(arC);

      for i := 0 to arL do
      begin
        ColorToRGB(arC[i], R, G, B);

        if (R >= 45) and (R <= 68) and (G >= 57) and (G <= 80) and (B >= 22) and (B <= 35) then
        begin
          ColorToXYZ(arC[i], X, Y, Z);

          if (X >= 2.81) and (X <= 5.42) and (Y >= 3.66) and (Y <= 6.92) and (Z >= 1.47) and (Z <= 2.58) then
          begin
            Result := arC[i];
            Writeln('AutoColor = ' + IntToStr(arC[i]));
            Break;
          end;
        end;
      end;

      ColorToleranceSpeed(tmpCTS);
      SetColorSpeed2Modifiers(0.2, 0.2);

      if (i = arL + 1) then
        Writeln('AutoColor failed in finding the color.');
    end;


    FindOBject
    Simba Code:
    function FindObject(var fx, fy: Integer): Boolean;
    var
      arP, arAP: TPointArray;
      arC, arUC: TIntegerArray;
      ararP: T2DPointArray;
      tmpCTS, i, j, arL, arL2: Integer;
      P: TPoint;
      X, Y, Z: Extended;
    begin
      tmpCTS := GetColorToleranceSpeed;
      ColorToleranceSpeed(2);
      SetColorSpeed2Modifiers(0.37, 1.59);

      if not(FindColorsTolerance(arP, 1852985, MSX1, MSY1, MSX2, MSY2, 3)) then
      begin
        Writeln('Failed to find the color, no object found.');
        ColorToleranceSpeed(tmpCTS);
        SetColorSpeed2Modifiers(0.2, 0.2);
        Exit;
      end;

      arC := GetColors(arP);
      arUC := arC;
      ClearSameIntegers(arUC);
      arL := High(arUC);
      arL2 := High(arC);

      for i := 0 to arL do
      begin
        ColorToXYZ(arC[i], X, Y, Z);

        if (X >= 2.81) and (X <= 5.42) and (Y >= 3.66) and (Y <= 6.92) and (Z >= 1.47) and (Z <= 2.58) then
        begin
          for j := 0 to arL2 do
          begin
            if (arUC[i] = arC[j]) then
            begin
              SetLength(arAP, Length(arAP) + 1);
              arAP[High(arAP)] := arP[j];
            end;
          end;
        end;
      end;

      SortTPAFrom(arAP, Point(MSCX, MSCY));
      ararP := SplitTPAEx(arAP, 10, 10);
      arL := High(ararP);

      for i := 0 to arL do
      begin
        if (Length(ararP[i]) < 10) then Continue;
        P := MiddleTPA(ararP[i]);
        MMouse(P.x, P.y, 5, 5);
        Wait(100 + Random(100));
        if (IsUpText('Jump')) then
        begin;
          Result := True;
          Break;
        end;
      end;

      ColorToleranceSpeed(tmpCTS);
      SetColorSpeed2Modifiers(0.2, 0.2);

      if (i = arL + 1) then
      begin
        Writeln('FindObject could not find object.');
        Exit;
      end;

      GetMousePos(fx, fy);
    end;

  2. #2
    Join Date
    May 2012
    Location
    Chaaaaiir
    Posts
    376
    Mentioned
    0 Post(s)
    Quoted
    1 Post(s)

    Default

    My advise? Use bitmaps...

  3. #3
    Join Date
    Dec 2011
    Location
    New York, USA
    Posts
    1,242
    Mentioned
    12 Post(s)
    Quoted
    193 Post(s)

    Default

    Use RemoveDistTPointArray to remove the middle points, then click the closest ATPA to (MSCX, MSCY)

  4. #4
    Join Date
    Jun 2007
    Posts
    117
    Mentioned
    0 Post(s)
    Quoted
    16 Post(s)

    Default

    Quote Originally Posted by Nebula View Post
    Use RemoveDistTPointArray to remove the middle points, then click the closest ATPA to (MSCX, MSCY)
    Ok, ill have to give that a try. Maybe you can start me off with an example? I've yet to experiment with ATPA's

  5. #5
    Join Date
    Dec 2011
    Location
    New York, USA
    Posts
    1,242
    Mentioned
    12 Post(s)
    Quoted
    193 Post(s)

    Default

    Quote Originally Posted by jman1208 View Post
    Ok, ill have to give that a try. Maybe you can start me off with an example? I've yet to experiment with ATPA's
    Well I'm not going to write an in depth ATPA guide; check out the tutorials section for that. But I will give a basic structure of what you should use once you're ready.

    Simba Code:
    begin
      FindColorsSpiralTolerance();  //To find the trap and all of its points...
      RemoveDistTPointArray(); //Remove the points inside a certain radius of the middle of the TPA
      TPAToATPAEx(); //Make the width and height of this the measurements of what you want to click
       SortATPAFrom(); sort all of the points by distance to you
      for i := 0 to high(ATPA) do
      begin
        mmouse, blah blah if isuptext() click
      end;
    end;

  6. #6
    Join Date
    Jan 2012
    Posts
    915
    Mentioned
    13 Post(s)
    Quoted
    87 Post(s)

    Default

    Nebula, WaitUpText('blah'); is better, and if you're needing multiple uptexts, WaitUpTextMulti('', '', ''); ig good. If you're right clicking, WaitOptionMulti('', '', ''); is your best bet. I learned that the hard way. Lol.

    Edit: Nebula, looked at the code you put, you forgot to return the boolean on the function.

  7. #7
    Join Date
    Jun 2007
    Posts
    117
    Mentioned
    0 Post(s)
    Quoted
    16 Post(s)

    Default

    Quote Originally Posted by Nebula View Post
    Well I'm not going to write an in depth ATPA guide; check out the tutorials section for that. But I will give a basic structure of what you should use once you're ready.

    Simba Code:
    begin
      FindColorsSpiralTolerance();  //To find the trap and all of its points...
      RemoveDistTPointArray(); //Remove the points inside a certain radius of the middle of the TPA
      TPAToATPAEx(); //Make the width and height of this the measurements of what you want to click
       SortATPAFrom(); sort all of the points by distance to you
      for i := 0 to high(ATPA) do
      begin
        mmouse, blah blah if isuptext() click
      end;
    end;
    Ok thanks, i will definitively give this a try when i have time been busy lately and ill post the results!

  8. #8
    Join Date
    Dec 2011
    Location
    New York, USA
    Posts
    1,242
    Mentioned
    12 Post(s)
    Quoted
    193 Post(s)

    Default

    Quote Originally Posted by xXTrollXx View Post
    Nebula, WaitUpText('blah'); is better, and if you're needing multiple uptexts, WaitUpTextMulti('', '', ''); ig good. If you're right clicking, WaitOptionMulti('', '', ''); is your best bet. I learned that the hard way. Lol.

    Edit: Nebula, looked at the code you put, you forgot to return the boolean on the function.
    It was just a basic structure of what he should do.. I know about WaitUpTextMulti and all that.

  9. #9
    Join Date
    Feb 2011
    Location
    The Future.
    Posts
    5,600
    Mentioned
    396 Post(s)
    Quoted
    1598 Post(s)

    Default

    Just going from the picture you posted..

    Colour....Tol...............Area.................. ..Speed..
    1387812, 3, IntToBox(261, 239, 687, 507), [0.37, 1.02];

    SortTPAFrom(TPA, Point(478, 340));
    Result := TPA[0];
    I am Ggzz..
    Hackintosher

  10. #10
    Join Date
    Jun 2007
    Posts
    117
    Mentioned
    0 Post(s)
    Quoted
    16 Post(s)

    Default

    Thank you guys sooooo MUCH i got it working i appreciate all the help THANK YOU!!!

    How i got it working

    Simba Code:
    Function JumpLeaves:boolean;
             var
        TPA : TpointArray;
      ATPA : TPointArrayArray;

      i, h, w, x, y, l, xas, yas : integer;
      begin
       xas := MSCX;
    yas := MSCY;
        FindColorsTolerance(TPA, 2050878, MSX1, MSY1, MSX2, MSY2, 3);
        if Length(TPA) > 0 then
     begin
     SortTPAFrom(TPA, Point(MSCX, MSCY));
          ATPA := TPAToATPAEx(TPA, 17, 10);

         L := High(ATPA)
        for i := 0 to L do
        if Length(ATPA[i]) > 0 then
     begin
         MiddleTPAEx(ATPA[i], xas, yas);
         MMouse(xas, yas, 0, 0);
         Wait(50 + random(50));
         if IsUpText('Jump') then
     begin
          Result := True;
          status('Object found!');
          Mouse(xas, yas, 3, 3, mouse_Left);
          exit;
          end;
        end;
      end;
    end;

  11. #11
    Join Date
    Jan 2012
    Posts
    915
    Mentioned
    13 Post(s)
    Quoted
    87 Post(s)

    Default

    Quote Originally Posted by Nebula View Post
    It was just a basic structure of what he should do.. I know about WaitUpTextMulti and all that.
    Yeah, I know, but he was probably going to copy it, make it easier. I wasn't trying to insult you, if I did. Sorry if I did.

    Good luck with your script! remember to credit who helped you! (Nebula, Brandon)
